Product Introduction:

TM5805 using arm core embedded platform, with GPS-based automatic announce, manual keys announce, speak to passengers which inside and outside of the bus, docking car display. The device has been carefully built, the shell is solid and reliable, enough to resist strong vibration, high and low temperature, electrostatic interference. Particularly suitable for automatic bus announce demand. The performance of device is perfect and stable, 0.5IDIN, small size, low power consumption, easy to install and maintain.

Function characteristics :

l Support GPS high-precision positioning.

l Announcer supports voice broadcasts not less than 40 lines, while each line supports broadcasts not less than 8 slogans.

l Support GPS automatic announce and manually announce.

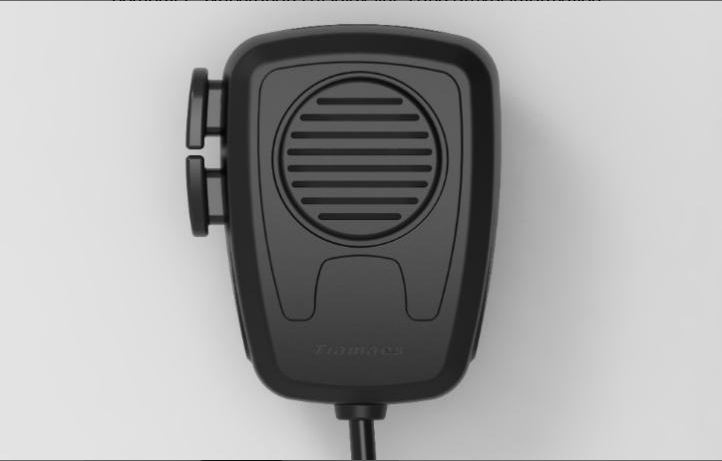

l The device is equipped with a handheld microphone, to support the driver through the microphone talk to passengers which inside and outside of the bus.

l Support update the slogans and program through the U disk.

l Support docking with the screen of the on-board computer, synchronous display lines and arrival information.

l The device has a real-time clock for maintaining system time.

Physical interface:

Handheld microphone interface

USB interface

Inside sound output, outside sound output

Power input interface

CAN communication interface

232 debug interface

Typical application:

Name	Specification	Remark
Rated supply voltage	DC12V、DC24V	Should be able to work stable in DC 9 ~ 32V
Rated power	≤10W	Peak power＜15W
Positioning type	GPS positioning
Power resistance polarity reversal	Can not work, but can not cause damage to the device
Audio system operating frequency	300～3400Hz
Audio output	Two-ways, rated output power is 10W	One way is inside sound, one way is outside sound
LCD display dot matrix	128*64
Key number	≥12
SD card	Support more than 8GB
Voice file format	MP3 format
Operation temperature	-20℃～60℃
Working relative humidity	10%～95%	non-condensing
Storage temperature	-40℃～85℃
Size	Using 1DIN standard size
